Focus on :

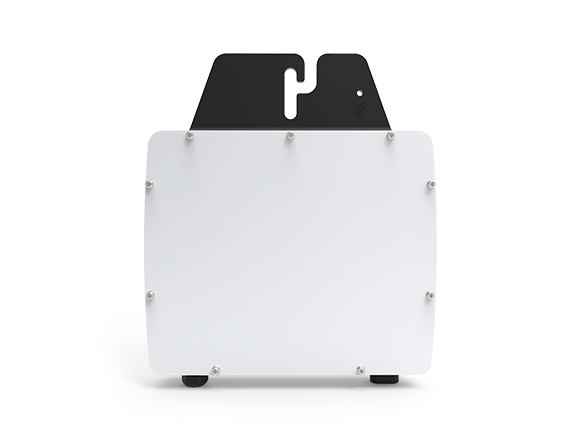

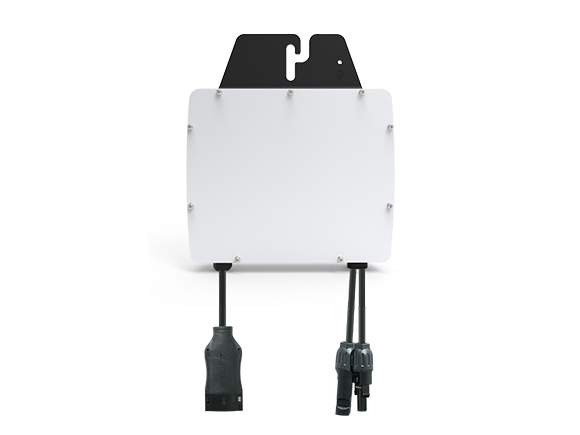

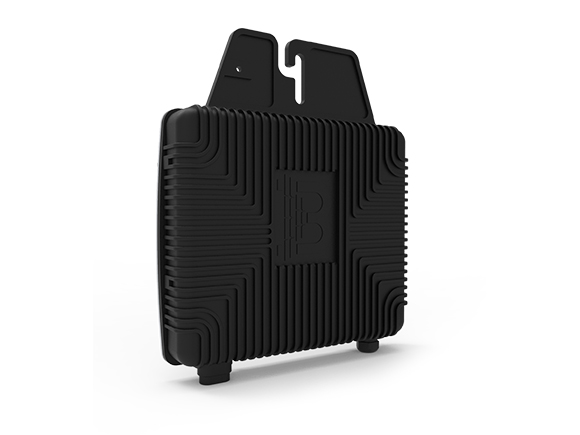

SINGLE-IN MICROINVERTER BYM550 / BYM700

Highlights:

    Highlights:

    • Connected to single panel
      Static MPPT efficiency 99.80%
      Peak efficiency 97.5%，EURO efficiency 97%
      High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection
      Plug and play
      25 years warranty

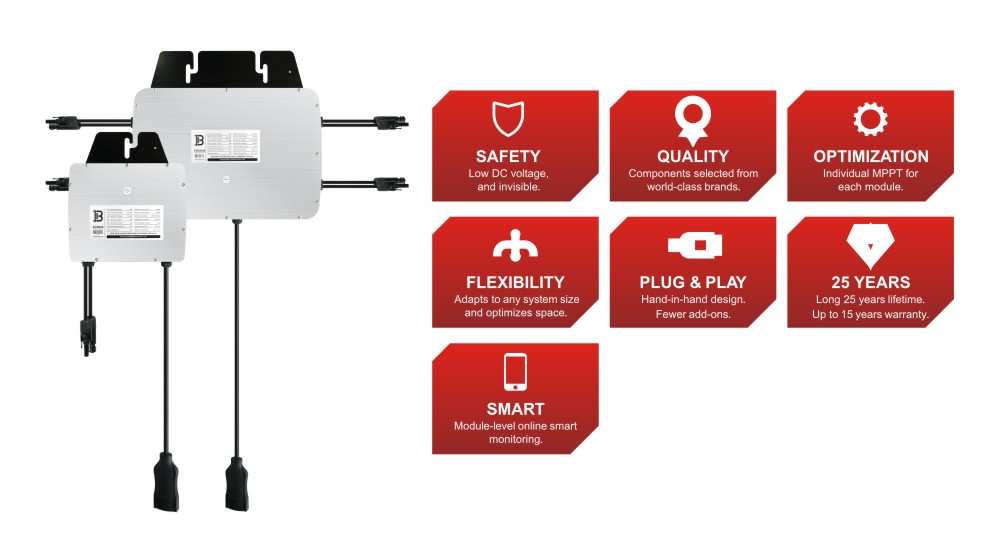

FEATURES/ADVANTAGES

  • beny micro inverter china

With the maximum output power of 721 VA, BENY BYM550/BYM700 microinverter connect to 1 panel and enable module-level maintenance and management of the PV station by monitoring power generation of each module.

Module-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/Zigbee.

Maximum output power up to 721W/channel, adapted to 60, 66 and 72 cells PV panels

Static MPPT efficiency 99.80%

Peak efficiency 97.5%，EURO efficiency 97%

High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection

SPECIFICATION

BYM500
Input Data(DC)
PV module power range(recommended) 400-670W, 60,66,72 Cell/(300-400W)*2, 72 Cell recommended
MPPT voltage range 24V-50V
Operating voltage range 16V-56V
Maximum DC input voltage 60V
Maximum short circuit input current 20A
Maximum continuous input current 18A
Output Data(AC)
Rated output power 550VA
Maximum output power 600VA (Vac≥230，Vmp≥32)
Rated voltage/range 230V/184-253V
Rated frequency/range 50Hz/60Hz(46.5-61)Hz
Maximum continuous output current 2.39A
Maximum harmonic distortion <3%
Power factor +/-0.95
Maximum connection number in one string 10 units(30A circuit breaker, 9AWG cable)
Efficiency
Peak efficiency 96.50%
European efficiency 96.00%
MPPT efficiency >99.8%
Night power consumption <100mW
Other parameters
Communication method PLCC/Zigbee dual module
Safety protection class Class I
Enclosure rating IP67
Operating temperature -40℃ to +70℃
Storage temperature -40℃ to +85℃
Relative humidity 0-98%
Transformer design High frequency transformer, Galvanically isolated
Overvoltage class OVC III (AC main circuit)，OVC II (PV)
Warranty period 10 years / 25 years(Optional)
Safety regulations VDE-AR-N 4105, IEC/EN61000,IEC/EN62109-1/2,EN50549-1/2019,
TOR2019 C10/11:2019, UTE C15-712-1:2013, VFR2019

BYM700
Input Data(DC)
PV module power range(recommended) 450-750W, 60,66,72 Cell/(300-400W)*2, 72 Cell recommended
MPPT voltage range 24V-50V
Operating voltage range 16V-56V
Maximum DC input voltage 60V
Maximum short circuit input current 24A
Maximum continuous input current 20A
Output Data(AC)
Rated output power 700VA
Maximum output power 721VA (Vac≥230，Vmp≥38)
Rated voltage/range 230V/184-253V
Rated frequency/range 50Hz/60Hz(46.5-61)Hz
Maximum continuous output current 3.04A
Maximum harmonic distortion <3%
Power factor +/-0.95
Maximum connection number in one string 8 units(30A circuit breaker, 9AWG cable)
Efficiency
Peak efficiency 97.50%
European efficiency 97.00%
MPPT efficiency >99.8%
Night power consumption <100mW
Other parameters
Communication method PLCC/Zigbee dual module
Safety protection class Class I
Enclosure rating IP67
Operating temperature -40℃ to +70℃
Storage temperature -40℃ to +85℃
Relative humidity 0-98%
Transformer design High frequency transformer, Galvanically isolated
Overvoltage class OVC III (AC main circuit)，OVC II (PV)
Warranty period 10 years / 25 years(Optional)
Safety regulations VDE-AR-N 4105, IEC/EN61000,IEC/EN62109-1/2,EN50549-1/2019,
TOR2019 C10/11:2019, UTE C15-712-1:2013, VFR2019
