DC EV Charger

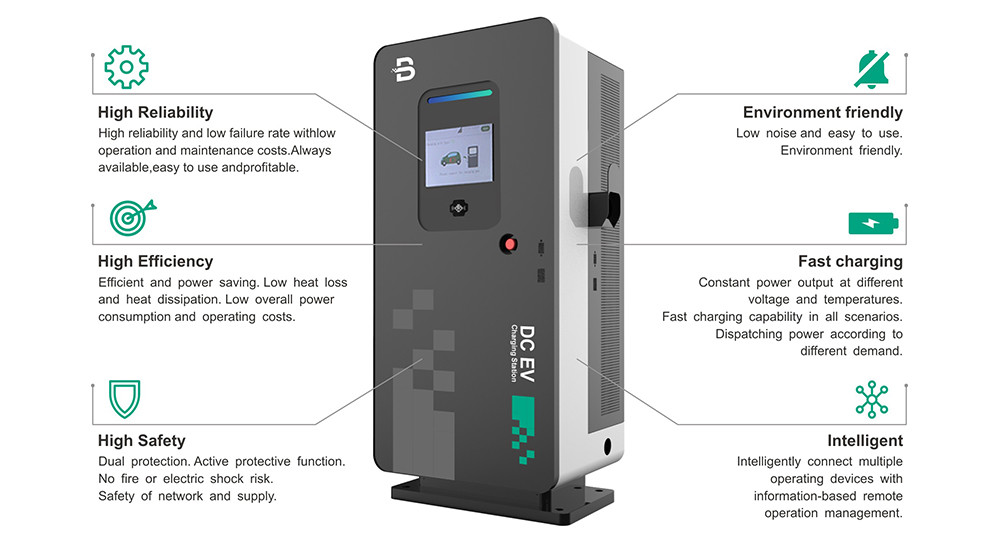

Highlights:
- 40kW - 240kW
- High Reliability
- High Efficiency
- High Safety
- Environment friendly
- Fast charging
- Intelligent
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.
Features/Advantages
*Time-saving - Fast charging
*Power saving - High conversion efficiency and low standby power consumption
*High Safety - Dual protection to both manual operation and vehicles
Specification
| Technical parameter configuration table | |||||
| Product power | 40KW | 60KW | 80KW | 120KW | 240KW |
| Input voltage | AC380V±15% | ||||
| Input frequency | 45-65Hz | ||||
| Output voltage | DC50-750V(constant power：400V-750V) | DC150-1000V(constant power：250-1000V) | DC50-750V(constant power：400V-750V) | DC150-1000V(constant power：250-1000V) | DC150-1000V(constant power：250-1000V) |
| Output current | single plug:100A；dual plugs:50A | single plug：240A；dual plugs：120A | single plug：100A；dual plugs：200A | single plug：250A；dual plugs240A | single plug：250A；dual plugs：250A |
| Cable length | Standard: 5 meters (can be configured according to customer requirements) | ||||
| Highest efficiency | ≥95% | ||||
| Noise | ≤65dB | ||||
| IP rating | IP54 | ||||
| Executive standard | IEC/EN 61851, IEC/EN 62196、ISO-15118、OCPP 1.6J support | ||||
| Auxiliary power | DC12V/DC24V | ||||
| HMI | Capacitive display, LED indicator | ||||
| Start method | APP、RFID、VIN | ||||
| Communication Interface | 4G/Ethernet、WIFI | ||||
| Protection design | Undervoltage, overvoltage, short circuit, overcurrent protection, leakage protection, overtemperature protection, emergency stop protection, lightning protection, insulation detection | ||||
| Cooling method | air cooling | air cooling | air cooling | air cooling | air cooling/liquid cooling |
| Operating temperature | -25℃〜+55℃ | ||||
| Storage temperature | -40℃〜+80℃ | ||||
| Environment humidity | 5%-90%RH no frost | ||||
| Altitude | ≤2000 m | ||||
