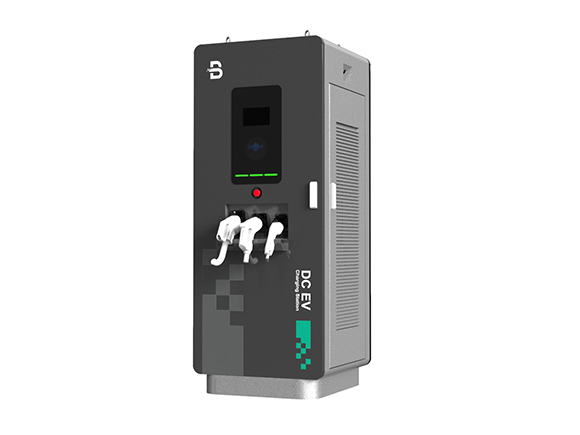

3 GUNS DC EV CHARGING STATION BDC
Highlights:
- 82kW - 262kW
- 3 Guns ( CCS1, CCS2, Chademo, AC Optional)
- Floor-stand
- 9.1inch LCD screen/LED light
- OCPP 1.6
- IP55
- 12 Months Warranty

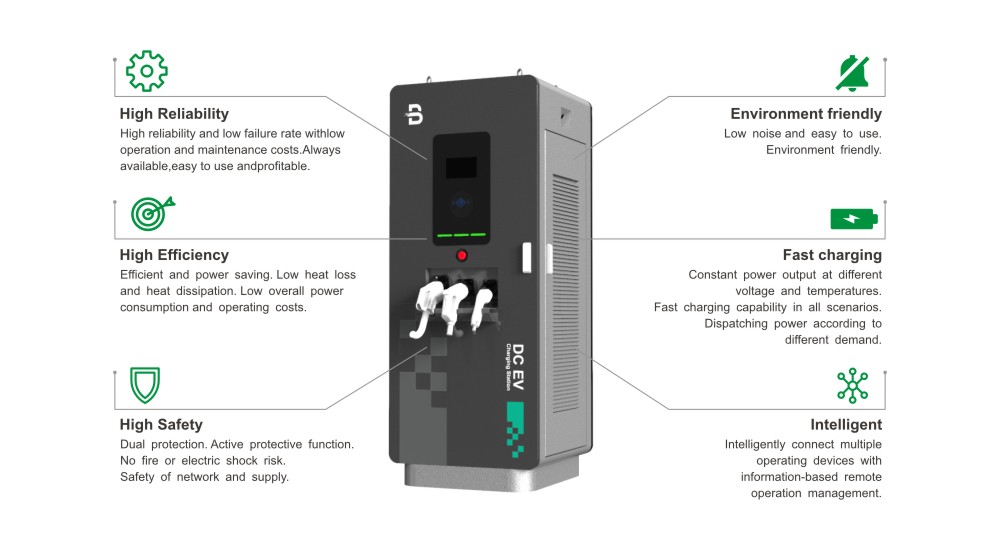

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.
| Structure Descriptio | |||
| Shell material | Carbon Steel | ||
| Dimension | 800*800*2000(L*W*T) | ||
| Weight | ≤350kG | ||
| Installation Method | Floor-stand type | ||
| Cable routing | Bottom inlet wiring,up outlet wiring | ||
| Cable length | 5 M | ||
| Charging outlets | CCS1+CHADEMO+AC | CCS2+CHADEMO+AC | CCS2+CCS1+AC |
| Connectivity authorization | RFID, App | ||
| Screen | 9.1inch LCD screen/LED light | ||
| Electrical Specification | |||
| AC input voltage | AC380V±15% ,3P+N+PEAC | ||
| Input frequency | 50Hz/60Hz | ||
| Rated power | 82kW / 112kW / 142kW / 172kW / 202kW / 262kW | ||
| Output voltage range |
CCS1: 150 Vdc –1000 Vdc CHADEMO: 150 Vdc –500 Vdc |
CCS2: 150 Vdc –1000 Vdc CHADEMO: 150 Vdc –500 Vdc |
CCS2: 150 Vdc –1000 Vdc CCS1: 150 Vdc –1000 Vdc |
| Output current |
CCS1: 0~250A CHADEMO:0~125A AC:0-32A |
CCS2: 0~250A CHADEMO:0~125A AC:0-32A |
CCS2: 0~250A CCS1: 0~250A AC:0-32A |
| Communiction | |||
| OCPP | OCPP 1.6 | ||
| Network interface | Ethernet/4G | ||
| Environment condition | |||
| Application place | Indoor/Outdoor | ||
| Working latitude | <2000m | ||
| Working temperature | -30~ +55 | ||
| Working humidity | 5%~95% | ||
| Protection level | IP55 | ||
| Natural cooling | Forced-air cooling | ||
| Warranty | 12 months warranty | ||
