In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2.
And a breathing valve shall be attached on the DC isolator.
BYH-32M1 solar DC isolator up to 1000V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.
The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.

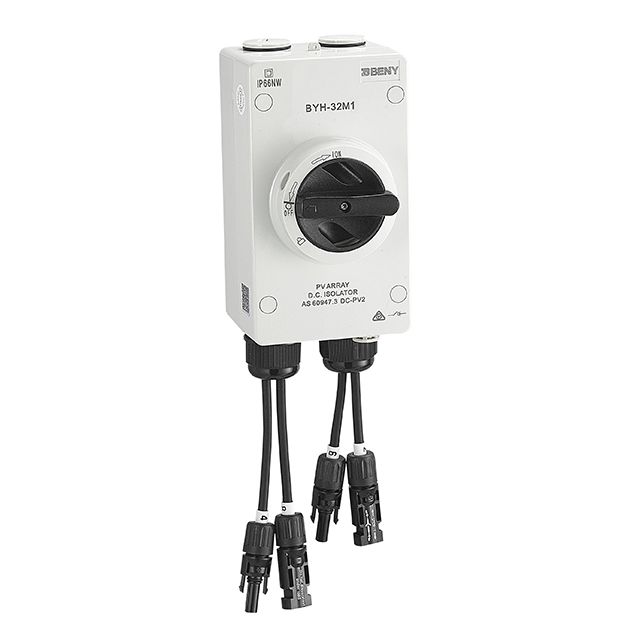

The DC isolator switch BYH-32M1 is wired with MC4 for faster and safer installation.
Pre-wired MC4 in factory avoid the loose wiring or failure installation.
| Model | BYH-32M1 |
| Poles | 2P |
| Standard | AS60947.3:2018,IEC60947.3 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 500V,600V,800V,1000V |
| Rated Current | 9A-40A |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CB |
