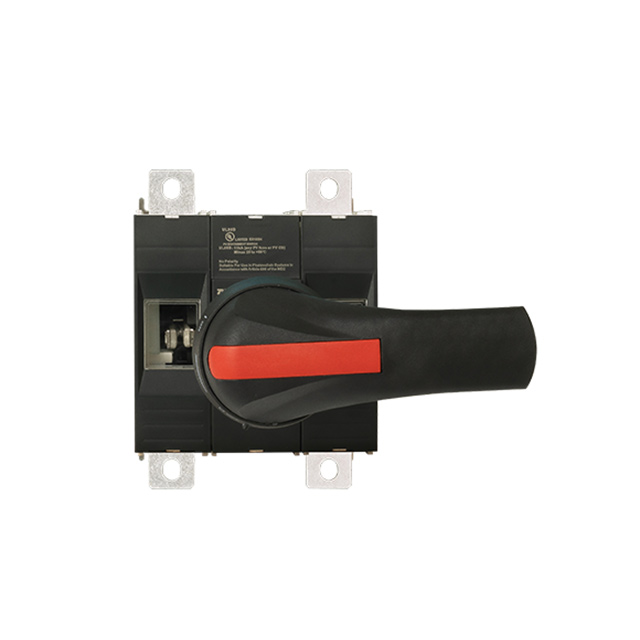

DC Disconnect Switch 1500V 400A BH-400-2P UL Listed
Highlights:
- 1500V DC, 400A
- 2 Pole
- UL98B
- Reliable DC arc extinguishing technology with PCT patents
- Lockable handle
- Non-polar switch
- Modular and compact design
![](/zyupload/202204/26/rohs-202204261748295584.jpg)
![](/zyupload/202204/26/TUV-100X100-202204262205250080.png)
![](/zyupload/202204/26/p02-2-1-1-s01-icon3-202204260118363824.jpg)
BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter,combiner box or any DC equipments build-in according to UL98B.
The DC load break switches provide safety isolation for one DC circuit up to 1500vDC 400A.
* Non-polar switch
* Modular and compact design
* Reliable DC arc extinguishing technology with PCT patents
* High capacity 10KA for 50ms test.
* Lower power losing
Model | BH-400-2P |
Poles | 2P |
Standard | UL98B |
Rated Working Voltage ( Ue) | 1000V/1500V |
Rated Current ( le) | 320A/400A |
Rated impulse withstand voltage ( Uimp) | 12kV |
Rated short-time withstand current ( lcw) | 10kA/50ms |
Rated short-circuit making capacity ( lcm) | 10kA/50ms |
Rated conditional short-circuit current ( kA) | 10kA |
Number of cycles of operation(With current) | 400 |
Number of cycles of operation(Without current) | 5000 |
IP rating terminals | IP20 |
Outside the ark handle | IP65 |
