DC Disconnect Switch 1500V 13A BYSS Series UL Listed

Highlights:

    • Non-polar DC switch
    • UL508i listed
    • 1500V at 13A
    • Lockable handle
    • Patented arc extinguishing instruction for arc interruption in 3ms


1500V DC DISCONNECT SWITCH UL508I LISTED

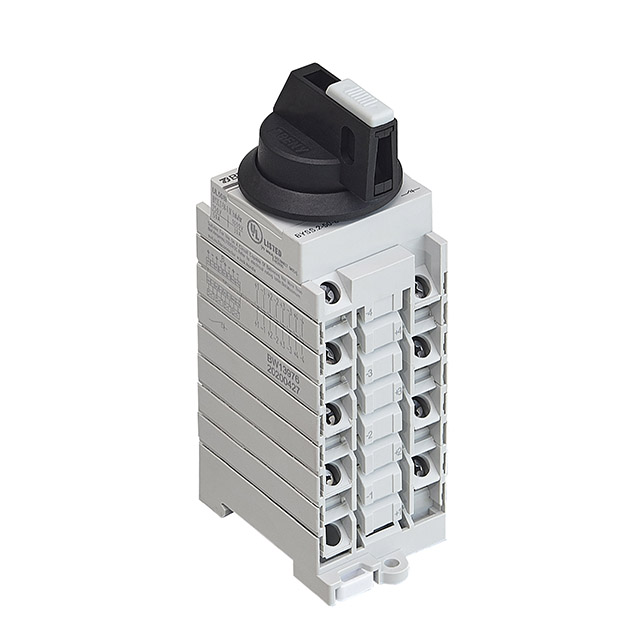

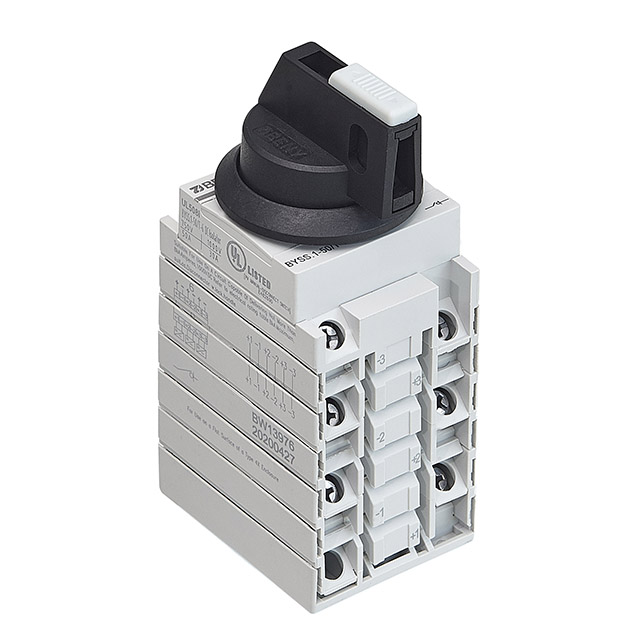

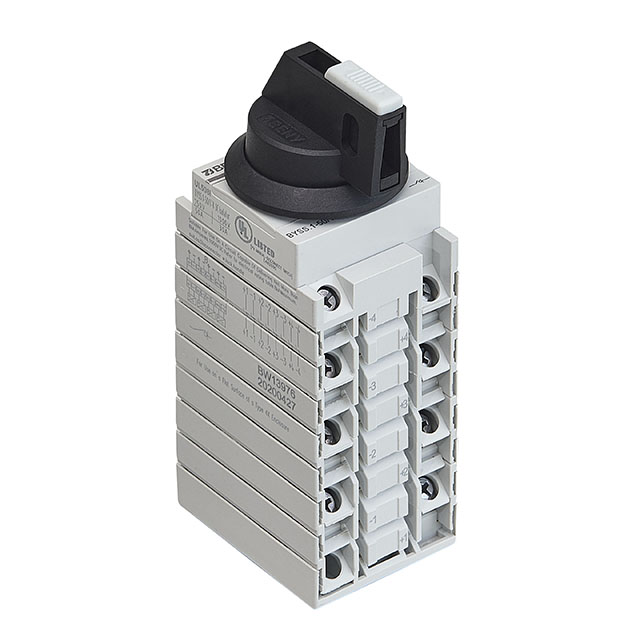

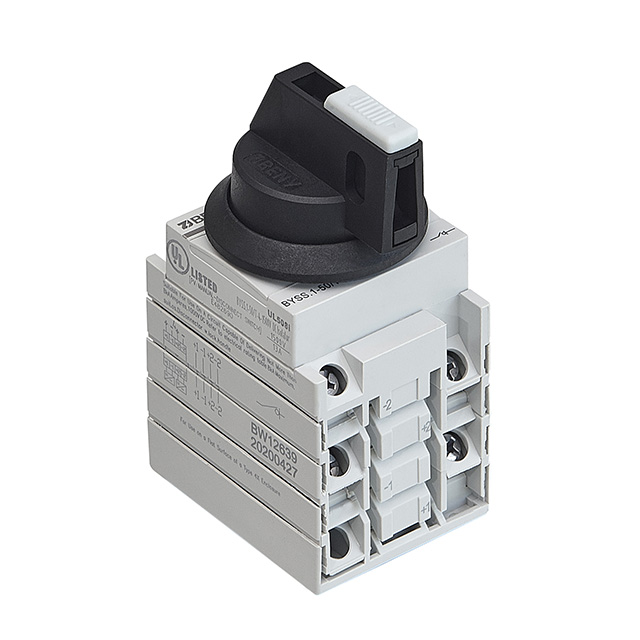

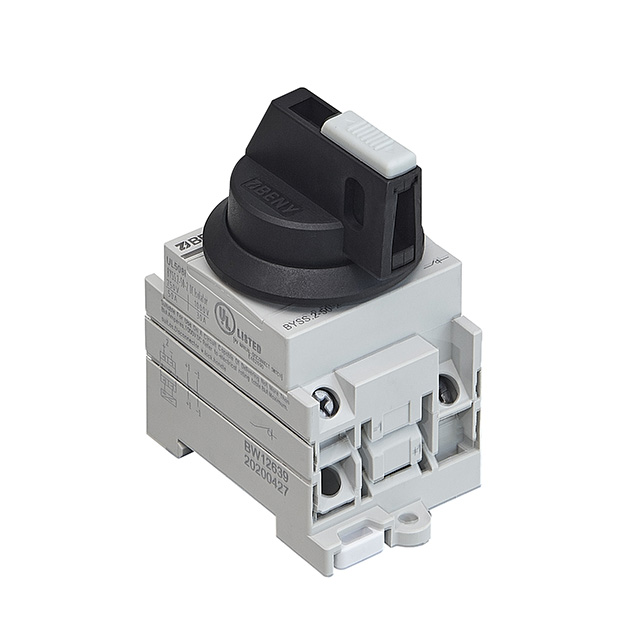

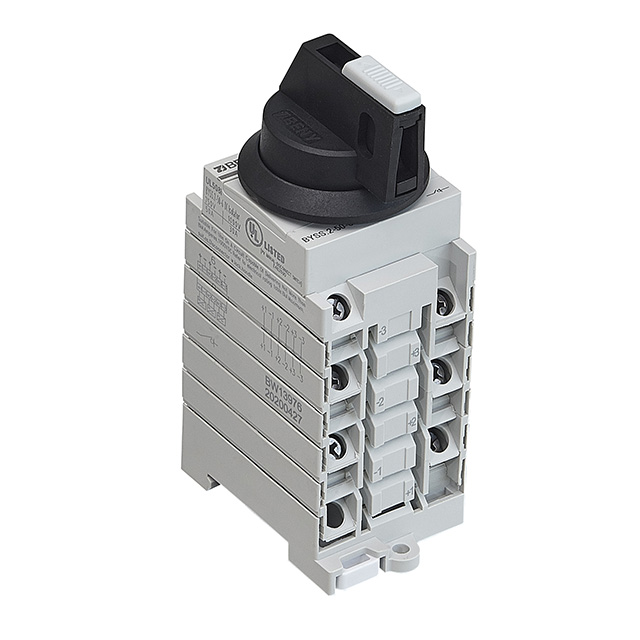

The BYSS.1-50/T (panel mounting) and BYSS.2-50 (din rail mounting) 1500V DC switches are developed for solar PV high power voltage.



Compact body design is for solar inverter DC side, solar combiner box and battery energy storage systems application.



Patented arc extinguishing chamber ensure safety and longer working life.



1500VDC 13A for each conductor.





SPECIFICATION

Model BYSS.1 -50/T, BYSS.2-50
Poles 2P 4P 6P 8P
Rated Operational Voltage (Ue) 1500V
Rated Current 13A
Certificate UL508i Listed
Mechanical Cycle 10000
Electrical Cycle 6000
