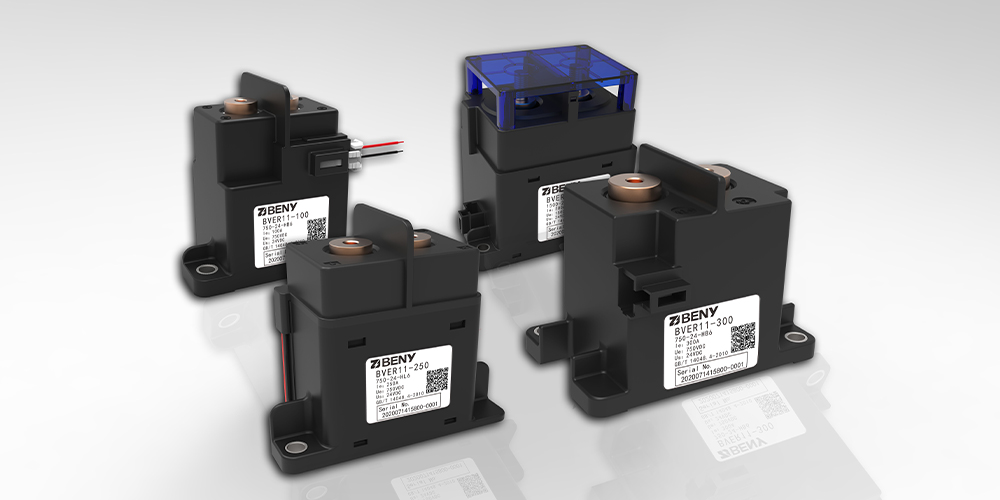

High Voltage DC Contactor 100A BEVR11-100A
Highlights:
- Ceramic brazing sealing technology
- Can handle currents of over 100 amp
- High power over 100 kW.
BEVR11-100A High Voltage DC Contactor is designed to be directly connected to high-current load devices.
BEVR11-100A is a heavy-duty electromagnetic switch that is normally used for switching an electrical circuit on and off specifically applied for
large lighting loads and motors.
BEVR11 High Voltage DC Contactor can handle currents of over 100 amperes and high power over 100 kW.
1. Ceramic brazing sealing technology
2. Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt when exposed to electricity;
the contact resistance is low and stable, and the parts exposed to electricity can meet IP67 protection level.
3. Carrying current 250A continuously at 85°C.
4. Flexibly respond to emergencies with the capability of switching 10 times of overcurrent.
5. Insulating resistance up to1000MΩ（1000VDC）, and dielectric strength between contacts
and coil can endure 4KV conform to the requirements of IEC 60664-1
| BEVR11-100A CONTACT DATA | ||
| 450V | 750V | |
|
Contact arrangement:
|
1 Form A
|
|
|
Contact resistance
|
≤1.5mΩ
|
|
| Rated operational current |
100A
|
|
|
Mechanical endurance
|
2×10⁵
|
|
|
Max switching voltage
|
750VDC | |
| Max. breaking current |
1000A
(300VDC,≧1 op） |
|
|
Max switching power
|
45kw | 75kw |
|
Capacitive loads
|
Switching：2.5×10⁴ ops
(22.5VDC,τ=1ms, Inrush:400A，Steady:100A） |
Switching：2.5×10⁴ops(37.5VDC,τ=1ms,
Inrush:400A，Steady :100A） |
|
Making:1 op (450VDC,τ=1ms, Inrush:1350A，Steady:100A)
|
||
| Resistive loads |
Breaking：1×10⁴ ops
(360VDC,50A） Switching：3×10³ops (450VDC,100A） |
Breaking:6×10³ops(600VDC,50A）
Switching：1×10³ops (750VDC,100A） |
| Current-carrying capacity |
100A：Continuous；120A：2h；200A：10min
400A：2min；600A：30s；1000A：0.6s |
|
| BEVR11-100A CHARACTERISTICS | |
|
Insulation resistance
|
1000MΩ(1000VDC) |
|
Dielectric strength between open contacts
|
3000VAC,1min |
|
Dielectric strength between contacts and coil
|
4000VAC,1min |
|
Operate time
|
≤30ms |
|
Release time
|
≤10ms |
|
Shock resitsance(functional)
|
196m/s² |
|
Shock Resistance(distructive)
|
490m/s² |
|
Vibration resistance
|
10～55Hz 1.5mm DA |
|
Humidity
|
5%～85%RH |
|
Ambient temperature
|
-40℃～+85℃ |
|
Load terminal structure
|
M5 Screw terminal female |
|
Unit Weight
|
Approx. 350g |
|
Size
|
77.8mm×44.8mm×77.2mm |
