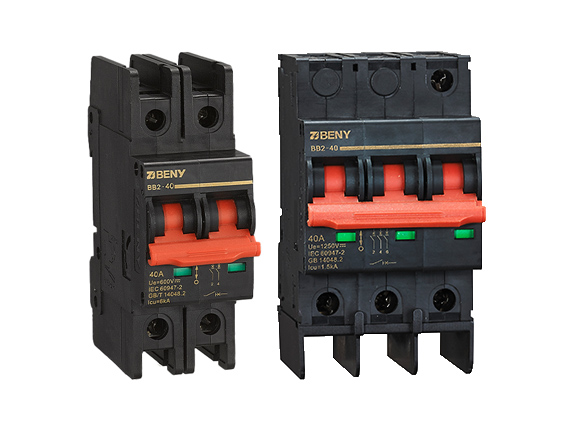

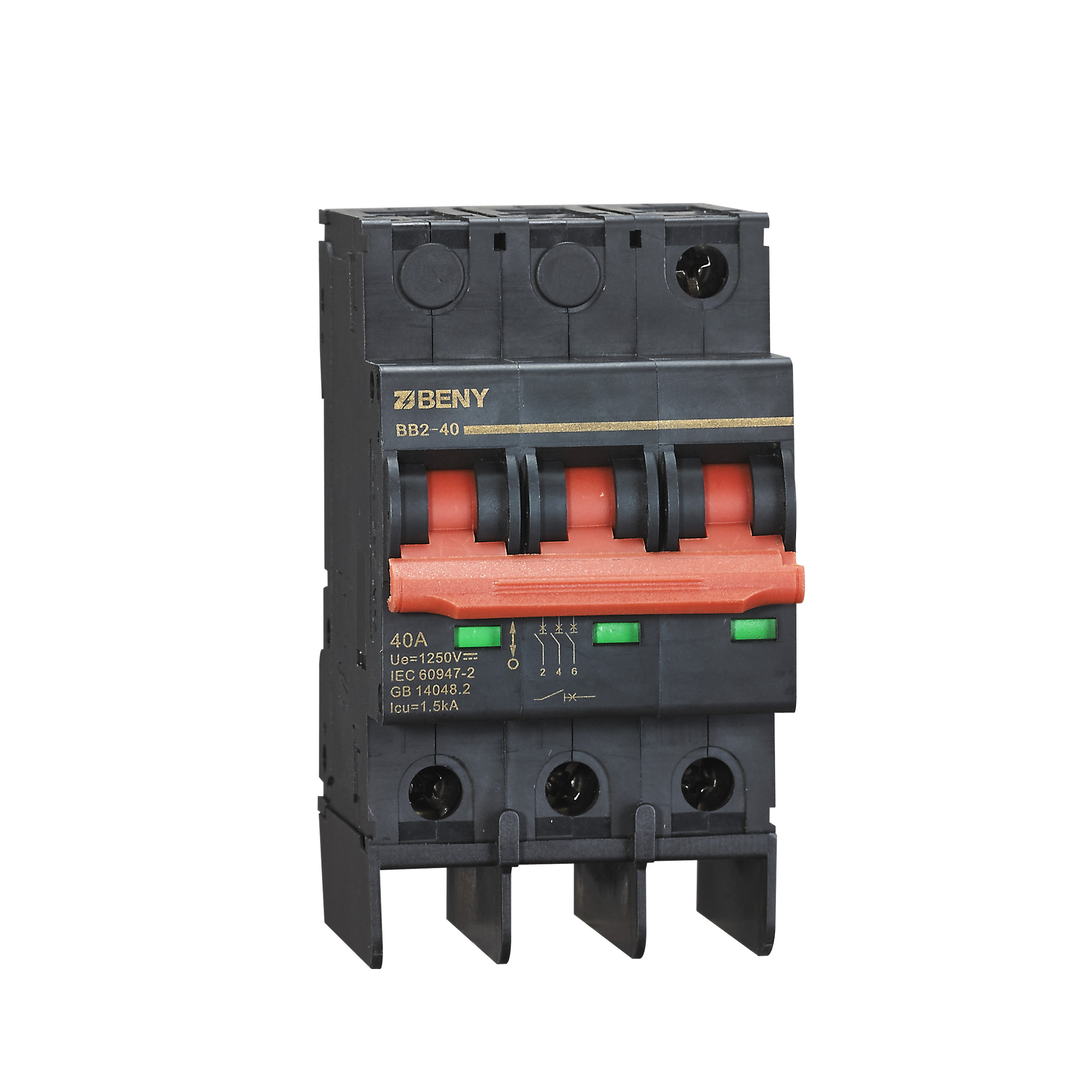

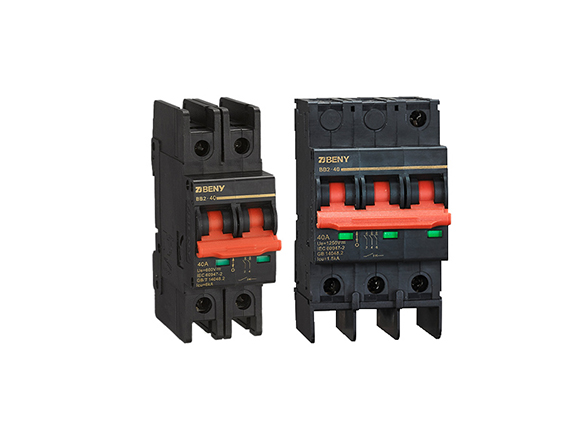

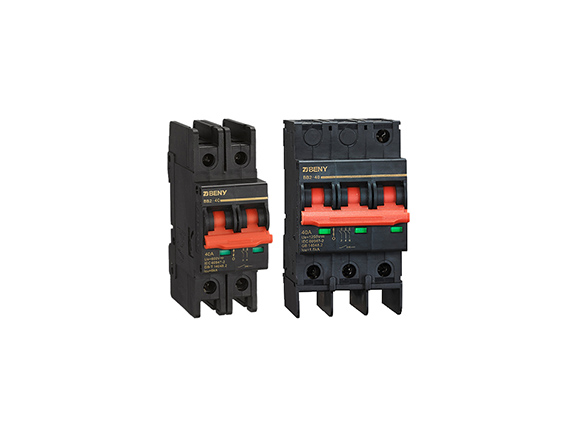

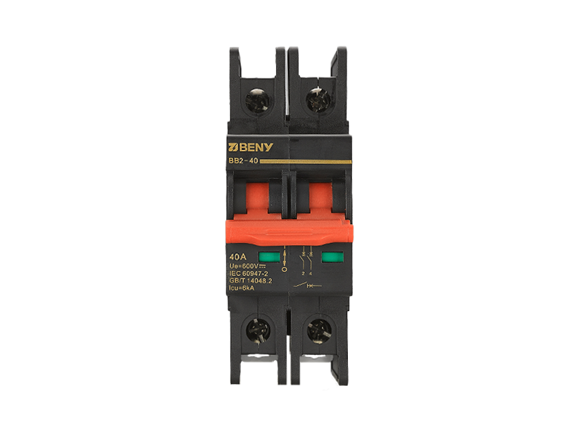

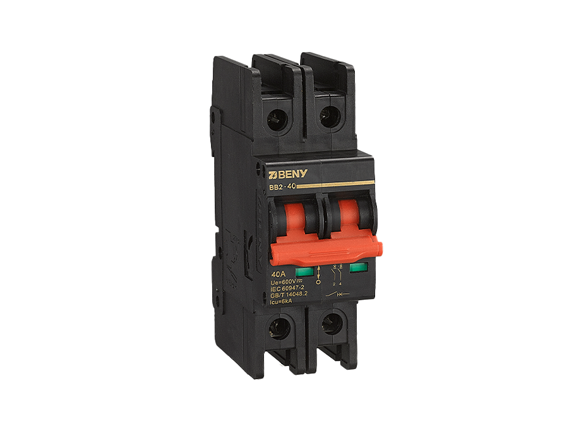

DC Mini Circuit Breaker 1500V 40A BB2-40 IEC
Highlights:
- Non-polarity DC breaker
- Up to 1500V 40A
- IEC-60947.2
- Arc flash barriers keep the systems safety
- IP65 PC enclosure is optional
The BB2-40 modular miniature circuit-breakers can be used in solar DC circuits up to 1500 VDC (4-poles execution). Application in solar DC circuits, battery energy storage systems and UPS.
Arc flash barrier design keeps solar equipment more safe and reliable.
For DC circuit over-current protection.
| Model | BB2-40 |
| Poles | 1P 2P 3P |
| Standard | IEC60947.2 |
| Utilization Category | DC-21B |
| Rated Operational Voltage (Ue) | 600V,1000,1500V |
| Rated Current | 3A 4A 6A 10A 13A 16A 20A 25A 32A 40A |
| Mechanical Cycle | 20000 |
| Electrical Cycle | 4000 |
| Protection Degree | IP65 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | CE |
