600V DC Combiner Box 2 In 1 Out with MC4 BHS-2-1M
Highlights:
- 600V DC
- 2 strings input, 1 string output
- Enclosure: BX-08
- IP65 protect degree for outdoor and indoor
- UV resistance, flame retardant PC material

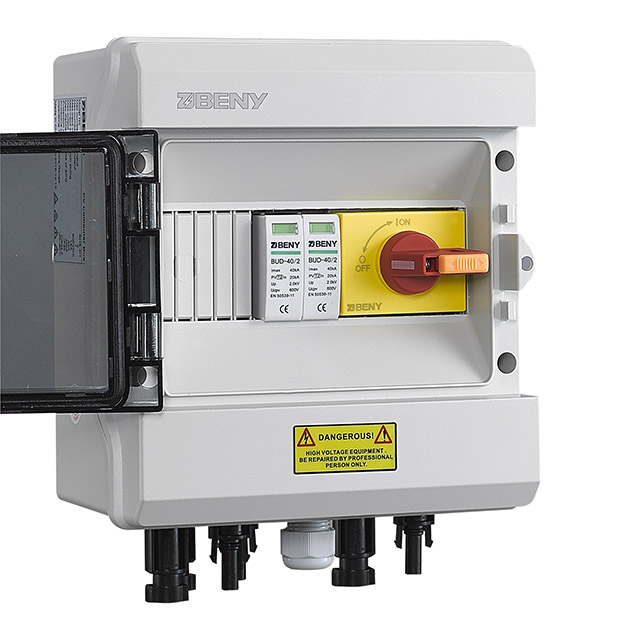

BHS-2/1M 600V solar box is equipped with a true solar DC disconnect switch, A 600V type 2 DC surge arrester for over-voltage protection.
All the true and reliable DC components are pre-assembled in a durable PC enclosure.
Pre-wired MC4 connectors on input and output for option.
| Model | BHS-2/1M 600V |
| Certificate | TUV |
| Standard | IEC62109-1, IEC61439 |
| Warranty | 5 Years for any quality problems |
| Number of input strings | 2 |
| Number of output strings | 1 |
| Protection Degree | IP65 (polycarbonate) |
| Dimension | 210*194*120mm |
