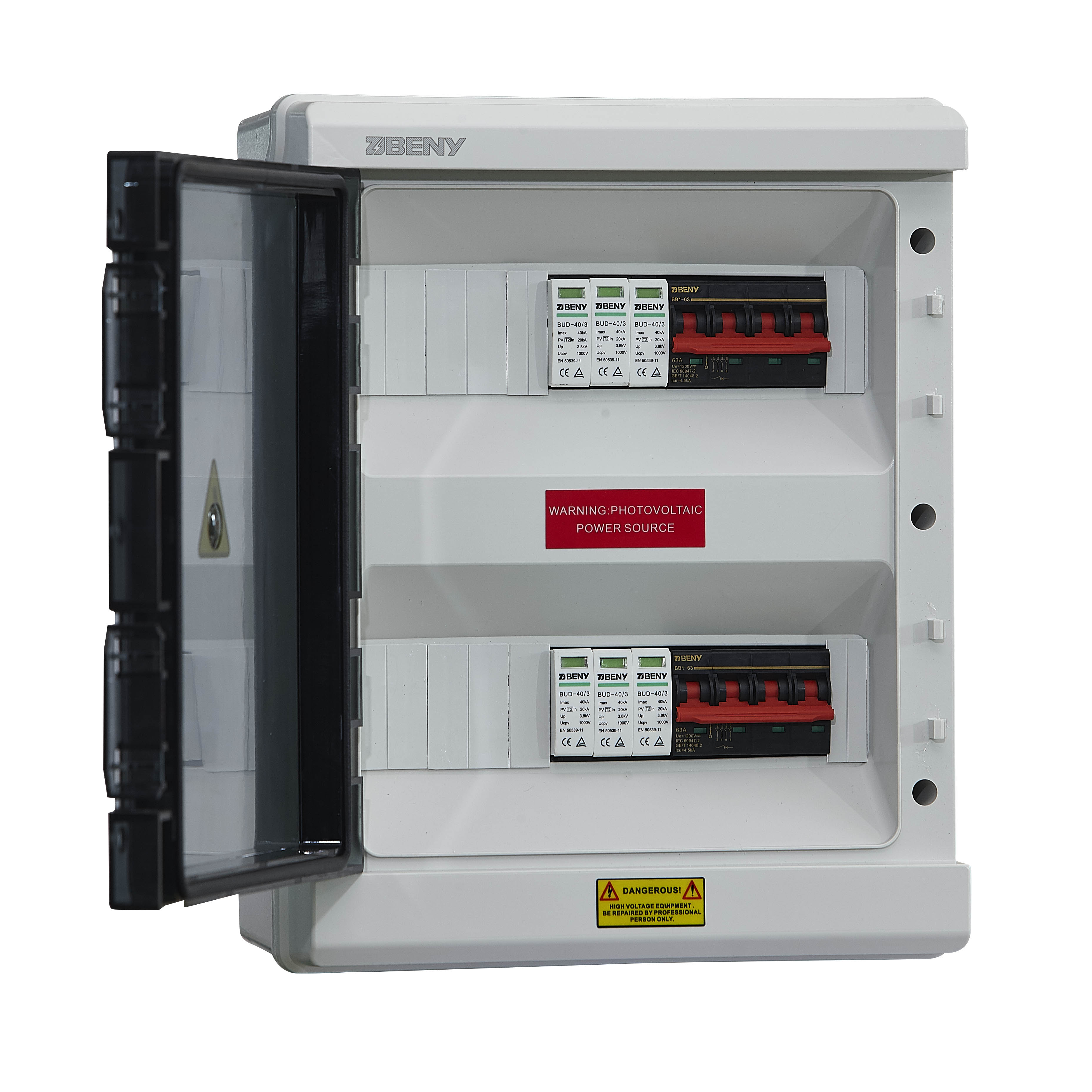

IP65 DC string box is designed for 4 string PV system.
For surge protection and over-load protection at solar DC side.
| Specification | ||
| Model Number | BHS-4/2 | |
| Input | 4 strings | |
| Output | 2 strings | |
| Max Voltage | 600V | 1000V |
| Rated Current of DC Breaker | 25A/25A | 25A/25A |
| Max Current Output | 63A/63A | 40A/40A |
| Enclosure | ||
| Material | Poly carbonate/ABS | |
| Degree of Protection | IP65 | |
| Impacts | IK10 | |
| Dimensions | L302*W373*H131mm | |
| Input Cable Glands | PG09, 2.5-16 | |
| Output Cable Gland | PG21, 2.5-16 | |
| Environment | ||
| Operating temperature | -25℃ – +60℃ | |
