Focus on :

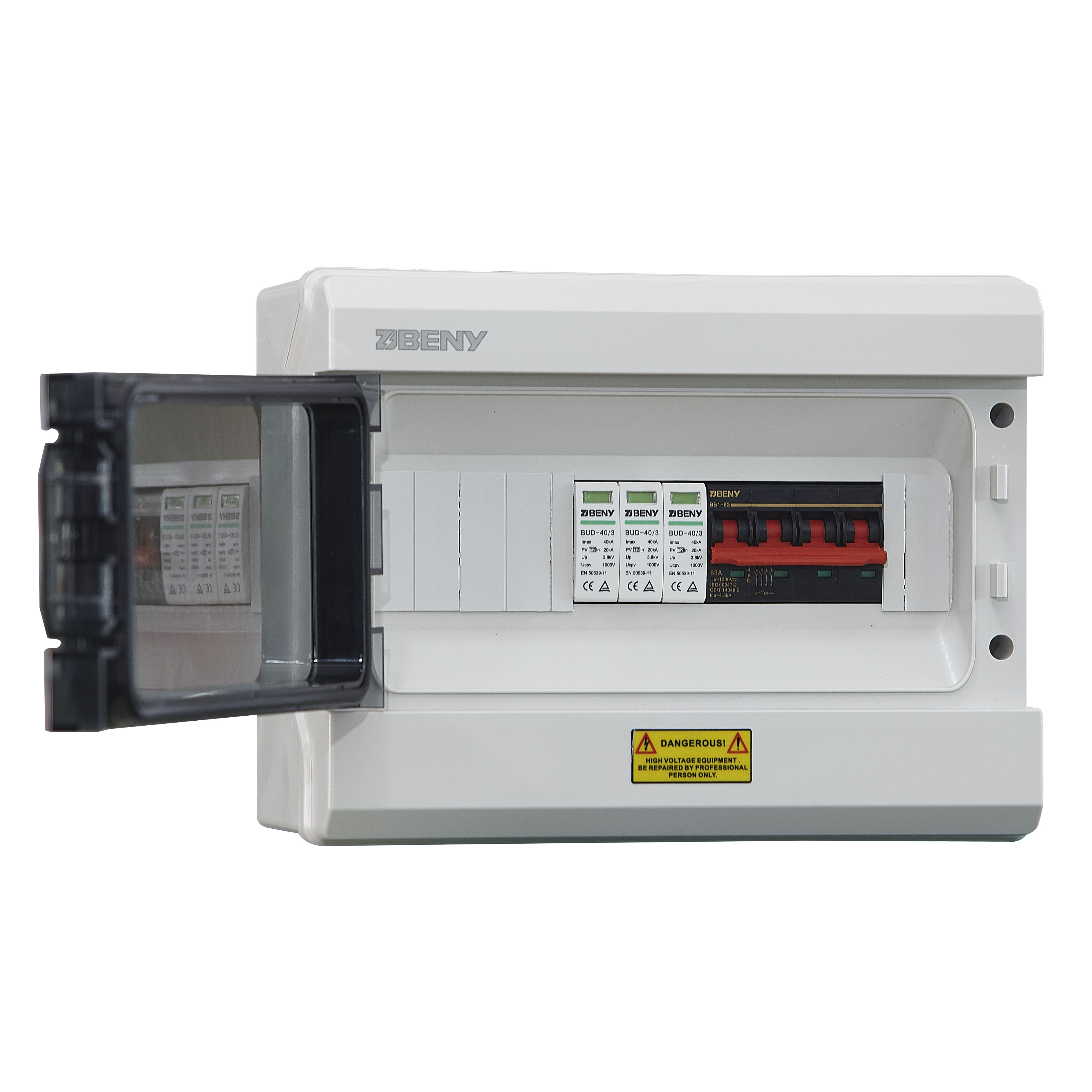

600V/1000V DC Combiner Box 3 In 1 Out BHS-3/1

Highlights:

    • 600V DC/ 1000V DC
    • 3 Input 1 Output
    • IP65

3 INPUT 1 OUTPUT 600VDC / 1000VDC


IP65 DC string box is designed for 3 string PV system.

For surge protection and over-load protection at solar DC side.





SPECIFICATION

Specification
Model Number BHS-3/1
Input 3 strings
Output 1 string
Max Voltage 600V 1000V
Rated Current of DC Breaker 40A 40A
Max Current Output 63A 40A
Enclosure
Material Poly carbonate/ABS
Degree of Protection IP65
Impacts IK10
Dimensions BX-13: L290*W220*H120mm
Input Cable Glands PG09, 2.5-16
Output Cable Gland PG21, 2.5-16
Environment
Operating temperature -25℃ – +60℃
