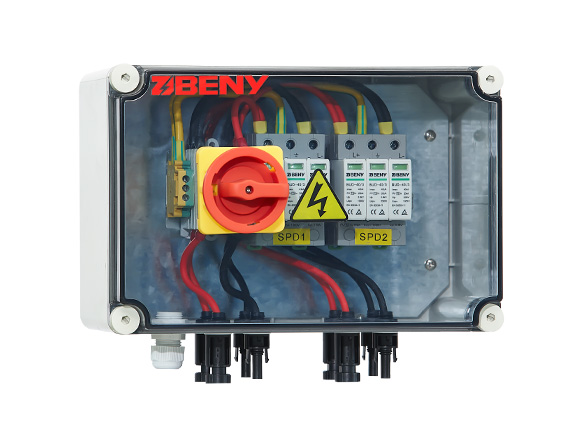

1000V Door Clutch DC Box 4 In 2 Out BHS-4/2
Highlights:
- 4 In 2 Out
- 1000VDC
- UL508i Approval, IEC60947-3 PV2
- IP66 Enclosure
IP66 DC string box is designed for 4 string PV system.
For surge protection and isolating at solar DC side.
| Specification | |
| Model Number | BHS-4/2 |
| Input | 4 string |
| Output | 2 string |
| Max Voltage | 1000V |
| Short Circuit Current per Input (Isc) | 15A-30A (changeable) |
| Max Current Output | 50A |
| Enclosure | |
| Material | Polycarbonate |
| Degree of Protection | IP66 |
| Impacts | IK10 |
| Dimensions (W*H*D) | |
| Input Cable Glands | PG09, 2.5-16 |
| Output Cable Gland | PG21, 2.5-16 |
| Environment | |
| Operating temperature | -25℃ – +60℃ |
