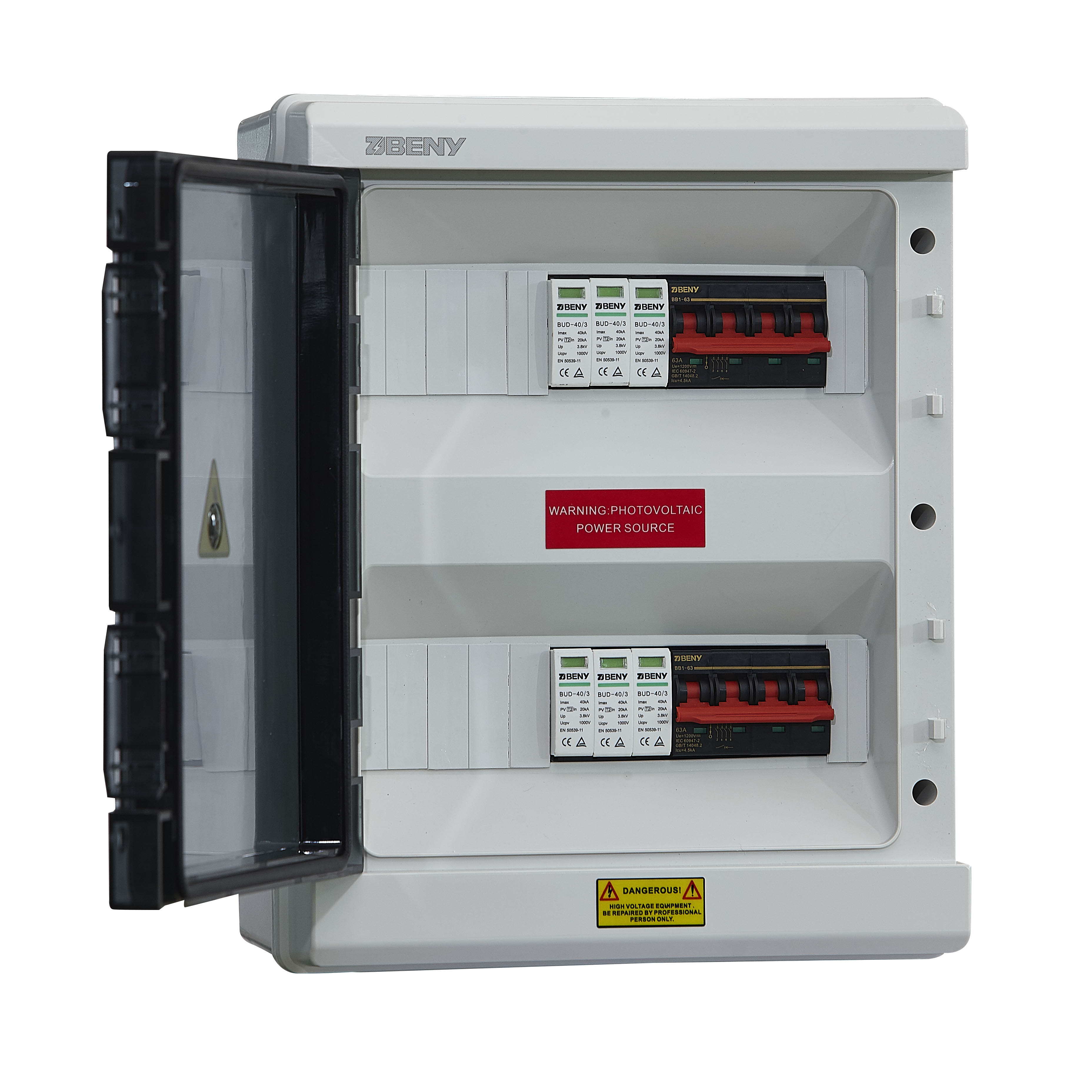

IP65 DC string box is designed for 6 string PV system.
For surge protection and over-load protection at solar DC side.
| Specification | |
| Model Number | BHS-6/2 |
| Input | 6 strings |
| Output | 2 strings |
| Max Voltage | 1000V |
| Rated Current of DC Breaker | 40A/40A |
| Max Current Output | 63A/63A |
| Enclosure | |
| Material | Poly carbonate/ABS |
| Degree of Protection | IP65 |
| Impacts | IK10 |
| Dimensions | L302*W373*H131mm |
| Input Cable Glands | PG09, 2.5-16 |
| Output Cable Gland | PG21, 2.5-16 |
| Environment | |
| Operating temperature | -25℃ – +60℃ |
