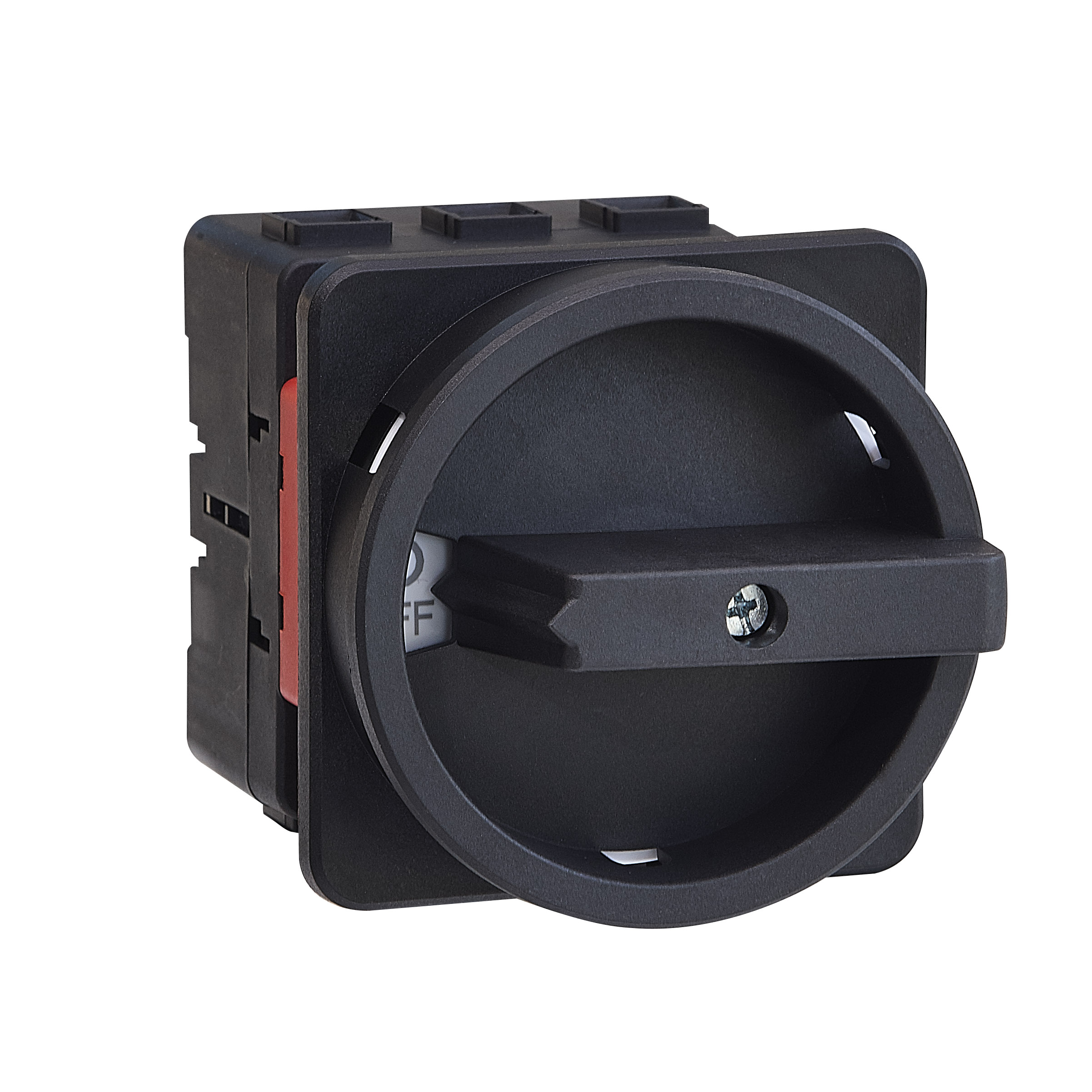

AC Disconnect Switch 125A BYAF-125 UL Listed
Highlights:
- UL508 Listed
- Tested to extreme ambient conditions from –40 to 85º C
- 50A 1000VAC
- Lockable at off position
- Remote signaling is optional
- 5 years warranty for free replace
![](/zyupload/202204/26/p02-2-1-1-s01-icon3-202204260118363824.jpg)
![](/zyupload/202204/26/rohs-202204261748295584.jpg)
BYAF-125 AC switch is according IEC60947.3 standard, panel mounting for AC controlling panel installation.
3P 1000VAC up to 50A for AC circuit switch and control
Application in solar inverter AC side, AC combiner box main switch or anything AC equipments match the voltage and current.
Model | BYAF-125 |
Poles | 3P |
Standard | UL508 |
Utilization Category | 3-PH |
Rated Operational Voltage (Ue) | 300V,480V,690V,800V,1000VAC |
Rated Current | 50Aac |
Rated frequency | 50Hz/60Hz |
Electrical Cycles | 1000 |
Mechanical Cycles | 10000 |
Protection Degree | IP20 body, 4X in enclosure |
Certificate | UL |
