Products Description

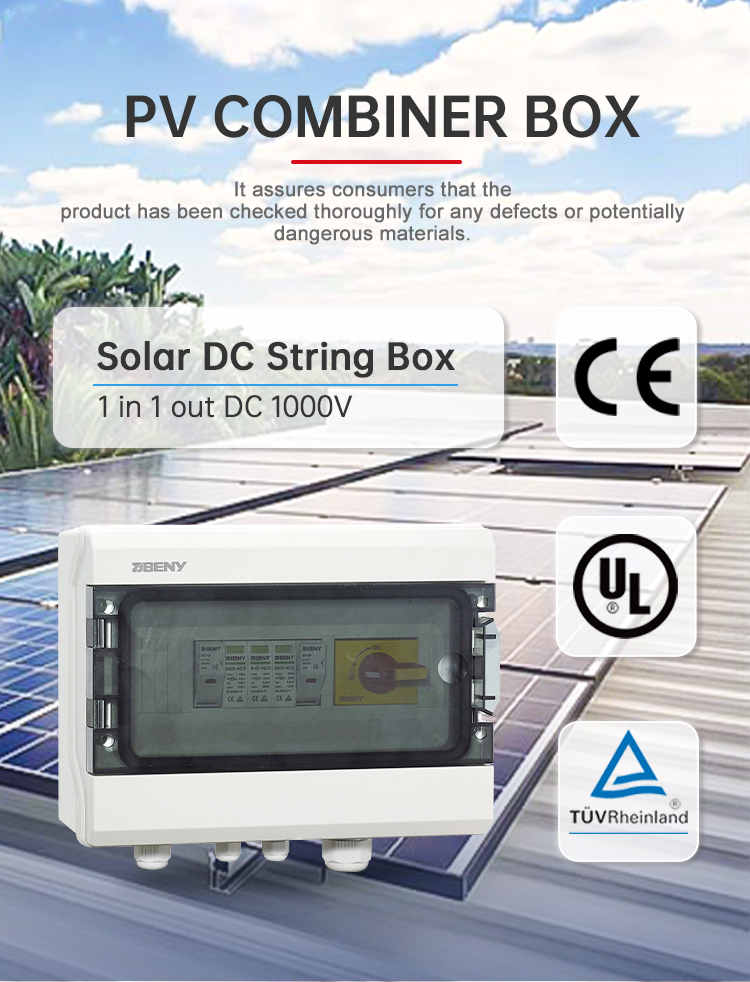

BHS-1/1 1000V DC Combiner Box for Solar PV

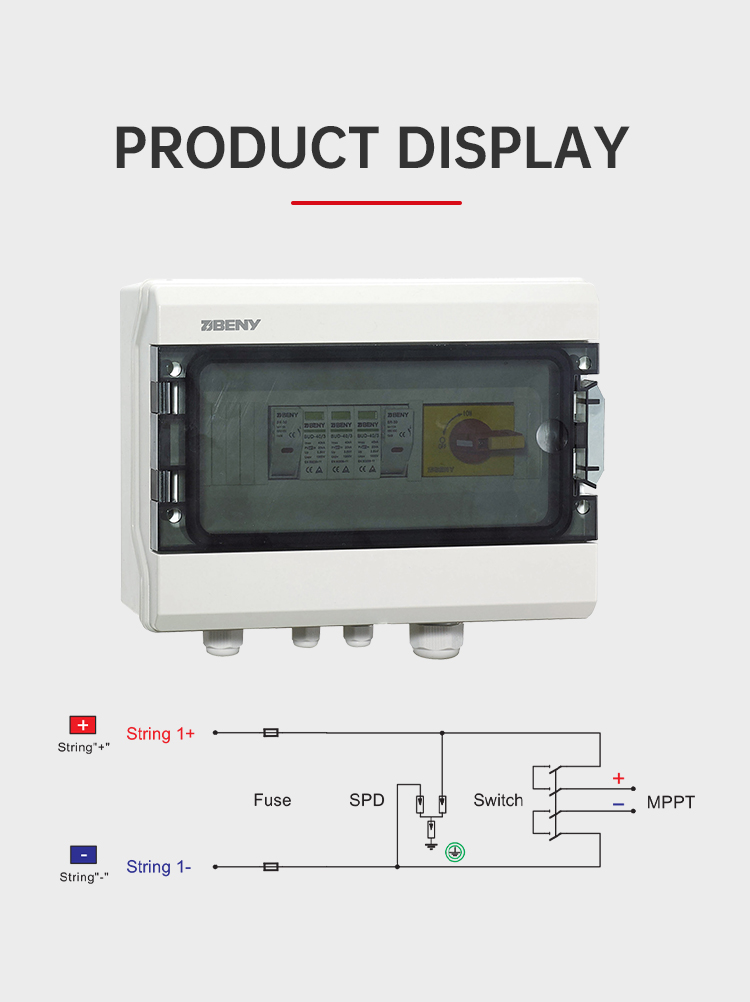

-Installed between solar panels and solar inverter.
-Protections including over-voltage, over-load for longer the solar system working life.

-Equipped with the most reliable DC components bring maximum protection.

BENY Electric Solar Combiner Box 1 Strings to 36 Strings

600V/1000V/1500V/AFCI/Monitoring Option

BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.

Product Paramenters

General Data
Model No.	BHS-1/1
Input	1 string
Output	1 string
Maximum Voltage	1000V
Max DC Short Circuit Current Per Input（Isc）	15A（Changeable）
Maximum Current Output	32A
Enclosure	BX-13
Material Type	Polycarbonate/ABS
Degree of Protection	IP65
Degree of Resistance to Impacts	IK10
Dimension（WHD）	292220120mm
Cable input Entry	PG09 Cable Gland,2.5-16mm²
Output Cable Gland	PG21 2.5-16mm²
DC Switch Disconnector	BYT.2-32
Rated Insulation Voltage （Ui）	1000V
Rated Current（Le）	32A
Certification	UL,TUV,KEMA,SAA,CE
DC Surge Arrester	BUD-40/3
Max Operation Voltage（Ucpv）	1000V
Maximum Discharge Current	40KA
Certification	TUV,CE
DC Fuse Holder	BR-30
Rated WorKing Voltage	1000V
Fuse Link	10*38mm Littel 15A
Certification	UL,CB,CE
